Description

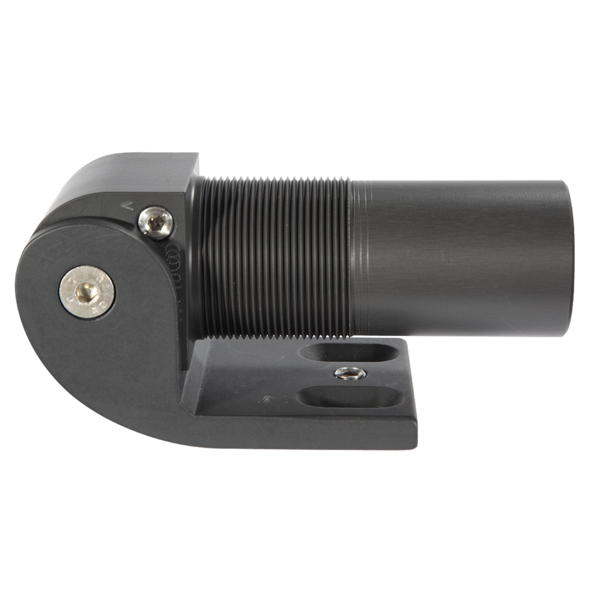

D & D Technologies 75108223M – SureClose Thrust Bearing Hinge and Closer + Snap – Steel Gates
Hydraulic Closer & Hinge, all-in-one
SureClose 108 – Center Mount
- ADA Compliant
- Final snap action
- Adjustable closing speed
- Visibly small footprint
- Highly tamper resistant
- Maintenance free – No messy grease
- Self-closes gates up to 260lbs.
SureClose 108 is a concealed hydraulic gate closer. It features Final Snap Action (FSA) which increases speed at the end of closing to overcome electric or coded locks. Both closing speed and FSA are adjustable using the enclosed adjustment tool.
Designed to never leak hydraulic fluid, the SureClose 108 is extremely safe and does not offer resistance if closed quickly in an emergency. Soft, quiet closure also protects the latching/locking system. Tested to 500,000 open/close cyles and a 1,500lb. (680kg) point load.
SureClose 108SF is suitable for pool and safety gates. SF models open to and self-close from 90°.* NO hold-open feature.
All SureClose hinges and closers come packaged with the gate mounting bracket included. Post mounting brackets sold separately.
Aluminum gate mounting brackets: Pre-drill using 3/16″ (5mm) drill bit and use #14 countersunk through-bolts or fasteners. See post brackets for their fastener requirements.
*CAUTION: When used on swimming pool gates, always consult local authorities for swimming pool codes.
