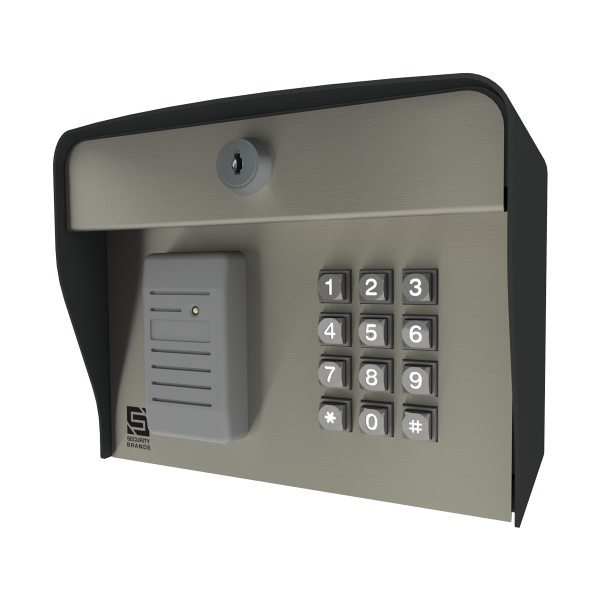

Security Brands 23-006kp – RemotePro CR – Wiegand-Output Prox Card Reader with Keypad – HID – Post Mount
MODEL 23-006kp
Security Brands now offers the RemotePro CR line of Wiegand-output card readers, available in post or surface mount. In addition, all surface mount models may be post mounted with the additional purchase of a mounting plate (#2-005 or 2-006). Post mount RemotePro CR Wiegand-output card readers (#23-006 & 23-006i) feature a stainless steel faceplate in a heavy metal, powder coated enclosure with nightlight, with the card reader mounted to the faceplate.
The RemotePro CR series is designed to operate in conjunction with the Advantage DG card reader controller system, as well as many popular security management systems using a Wiegand protocol. Simply connect the RemotePro CR of your choice to a new or existing master controller (via 6 conductor, 22-gauge wire) and you have immediate access control. This is a perfect solution for expanding an access control system that already utilizes an existing master controller.
General Specifications
• Input: 9–12 VDC (supplied by master controller)
• Operating temperature: -15 to 175 Fahrenheit
• Dimensions: 23-006i: 6.625h x 5.50w x 4.25d
• Intercom: 8 ohm Mylar speaker w/ call button
• Ship weight: 23-006i: 7 lbs. 1″ – 3″ Read Range Features
• Read Range: 23-006i: 0.5 – 2 inches
• LED indicators
• Night Light (#23-006 & 23-006i only)
• Optional camera (#23-006 & 23-006i only)
