Description

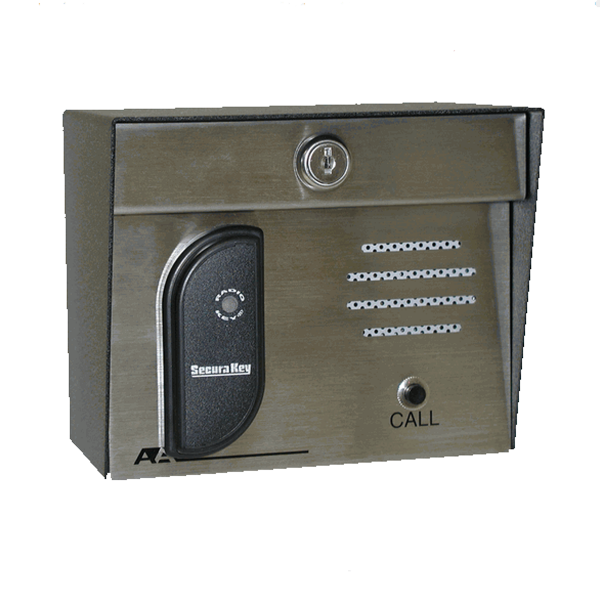

Security Brands 23-013i – RemotePro CR with Intercom – Post Mount Slave – SecuraKey
MODEL 23-013i
Security Brands now offers the RemotePro CR line of Wiegand-output card readers, available in post or surface mount. Post mount RemotePro CR Wiegand-output card readers feature a stainless steel faceplate in a heavy metal, powder coated enclosure with nightlight, with the card reader mounted to the faceplate.
The RemotePro CR series is designed to operate in conjunction with the Advantage DG card reader controller system, as well as many popular security management systems using a Wiegand protocol. Simply connect the RemotePro CR of your choice to a new or existing master controller (via 6 conductor, 22-gauge wire) and you have immediate access control. This is a perfect solution for expanding an access control system that already utilizes an existing master controller.
General Specifications
- Input: 9–12 VDC (supplied by Master Controller)
- Operating temperature: -15 to 175 Fahrenheit
- Dimensions: 23-006i: 6.625h x 5.50w x 4.25d
- Intercom: 8 ohm Mylar speaker w/ call button
Features
- 26-bit Wiegand output
- LED feedback
- Nightlight
- Secura Key proximity card reader
- 1-3 inch read range
- 9–12 VDC (supplied by master controller)
