Description

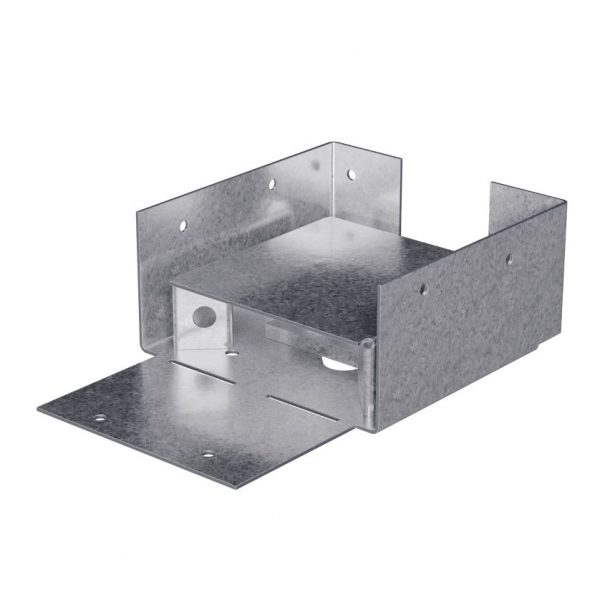

Simpson Strong-Tie ABW44Z – 4″ x 4″ Adjustable Standoff Post Base
The AB series of retrofit adjustable post bases provide a 1″ standoff for the post, are slotted for adjustability and can be installed with nails,
Strong-DriveĀ® SD Connector screws or bolts (ABU). Depending on the application needs, these adjustable standoff post bases are designed for
versatility, cost effectiveness and maximum uplift performance.
Key Features
- The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
- The 1″ standoff helps prevent rot at the end of the post and meets code requirements for structural posts
installed in basements or exposed to weather or water splash
Installation
- Use all specified fasteners
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports)
- Place the standoff base and then the post in the ABW and fasten on three vertical sides, using nails or Strong-Drive SD Connector screws
- Bend up the fourth side of the ABW and fasten using the correct fasteners
