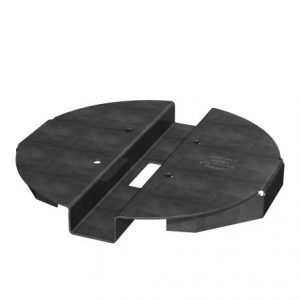

Simpson Strong-Tie PBV6PC – 6-inch Diameter Hidden Standoff Post Base

Description

Simpson Strong-Tie PBV6PC – 6-inch Diameter Hidden Standoff Post Base

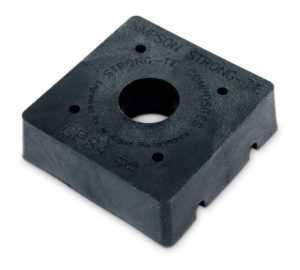

The CPS is a composite plastic standoff base designed for use with hollow or solid wood columns, both indoors and outdoors. The line includes bases for 4×4, 4×6, 5×5, 6×6, 8×8,10×10 and 12×12 columns. All sizes are tested and load rated. The PBV is a hidden standoff post base. Two different shapes fit a variety of post sizes.

Installation

Post:

• Drill a 3/4″-diameter hole, 10″ into the center of the post.
• Clean out dust. Fill hole halfway with Simpson Strong-Tie^® SET-3G^™ epoxy anchoring adhesive.
• Insert all-thread rod and allow epoxy to set and cure.
• Secure standoff to post using four 0.148″ x 3″ nails, except PBV which uses four Strong-Drive^® SDS Heavy-Duty Connector screws.

Concrete:

• Drill a 3/4″-diameter hole per anchor design (see table footnote 2).
• Clean out dust. Fill hole halfway with Simpson Strong-Tie SET-3G epoxy anchoring adhesive. Insert post subassembly into hole and allow epoxy to set and cure.
• Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).

Material

• 14-gauge galvanized steel
