Description
Security Brands 40-013 – RemotePro CR – Surface Mount – SK

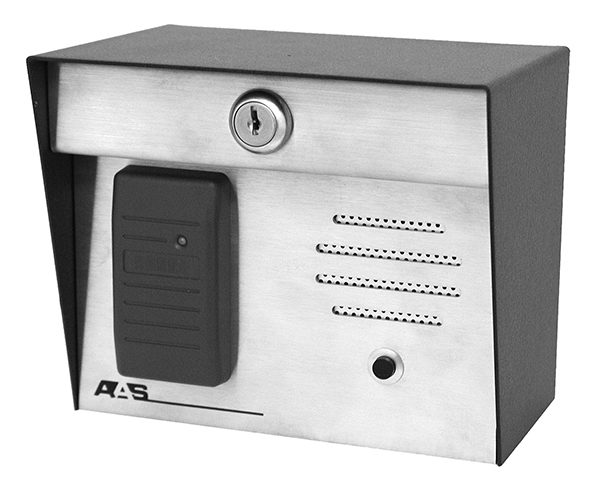

MODEL 40-013
Security Brands, Inc. now offers the RemotePro CR line of 26 bit wiegand output card readers, available in post or surface mount. In addition, all surface mount models may be post mounted with the additional purchase of a mounting plate.
The RemotePro CR series is designed to operate in conjunction with the SBI AdvantageDG, or ProAccess 200 controllers, as well as many popular security management systems using a 26 bit wiegand protocol. Simply connect the RemotePro CR of your choice to a new or existing master controller (via 6 conductor, 22 gauge wire) and you have immediate access control.
Post mount RemotePro readers feature a stainless steel faceplate with a heavy metal powder coated enclosure. All post mount readers include night lights, with an optional intercom and camera.
General Specifications
- Input: 16.5VAC (transformer included)
- Output: n/o or n/c contact 1-99 second
- Operating temperature: -15 to 175 Fahrenheit
- Dimensions: 6.625h x 5.50w x 4.25d
- Intercom: 8 ohm Mylar speaker w/ call button
- Ship weight: 5 Lbs.
- Relay Specs
- DC Load AC Load
- Contact Rating 1A @ 24V .5A @ 120V
- Max. switching voltage 150V 220V
- Max. carrying current 2A 2A
- Max. switching power 28W 60VA
Features
- 2000 card capability
- Programmable Personal Master Code
- Programmable Latch / Unlatch Card
- Programmable Sleep Card
- Three strikes youre out
- True Anti Pass Back
- 1000 code transaction buffer
- Optional camera
- LED indicators
- Non-volatile memory
- Night Light
- Limited two year warranty
- Two relays
- Split-relay function:
– allows user to activate two separate doors / gates - Compatible with one œslave unit
– refer to the AAS RemotePro CR line
