Description

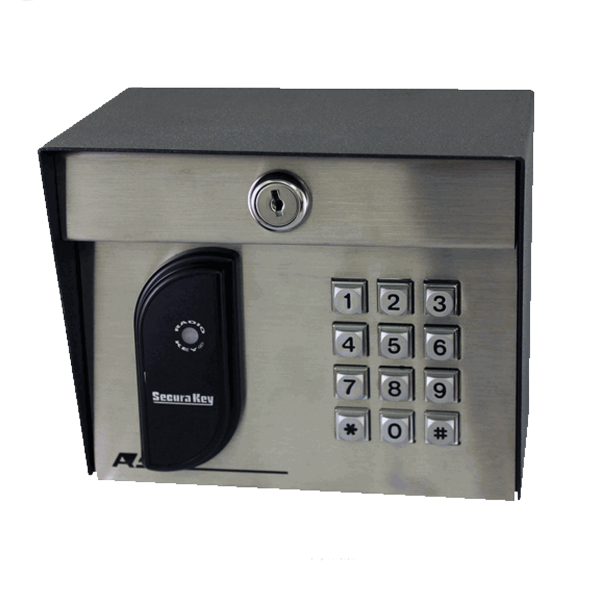

Security Brands Advantage 23-213kp – Advantage DG Master Controller with Keypad – Post Mount – SecuraKey
MODEL 23-213KP
The Security Brands, Inc. line of StandAlone Proximity card readers combine the latest in proximity technology with the ease of non PC programming.
Each StandAlone Proximity unit features a a high grade stainless steel faceplate with heavy metal, powder coated enclosure. Mounted to the face plate is an HID Prox Point reader with the controller board safely mounted inside the enclosure. Simply unlock the faceplate and program the unit from the enclosed keypad. Thats it. Its that simple!
All StandAlone Proximity card readers have a 1000 transaction memory buffer that can be printed out on an RS-232 serial port printer (SBI #21-045 or #21-047). The unit will report time, date, card number entered, relay activated and valid / invalid card. When more than one card reader is needed at an access point, choose model #23-206(i).
This unit allows an additional “slave” proximity reader (see the SBI RemotePro CR line) to be wired to it, making it the ideal product for an entry / exit application or where two proximity readers are needed.
General Specifications
Input: 16.5VAC (transformer included)
Output: n/o or n/c contact 1-99 second
Operating temperature: -15 to 175 Fahrenheit
Intercom: 8 ohm Mylar speaker w/ call button
Contact Rating 1A @ 24V .5A @ 120V
Max. switching voltage 150V 220V
Max. carrying current 2A 2A
Max. switching power 28W 60VA
Features
- 2000 card capability
- Programmable Personal Master Code
- Programmable Latch / Unlatch Card
- Programmable Sleep Card
- Three strikes you’re out
- True Anti Pass Back
- 1000 code transaction buffer
- Optional camera
- LED indicators
- Non-volatile memory
- Night Light
- Limited two year warranty
- Two relays
- Split-relay function:
– allows user to activate two separate doors / gates - Compatible with one œslave unit
– refer to the SBI RemotePro CR line
