Security Brands 23-2000rt – Advantage DG Master Controller – Rain Tight
MODEL 23-2000RT
Available with a 2000 card capability, the AdvantageDG is one of the most cost effective, non PC based card reader controllers on the market. Each master controller is designed to operate two 26 bit, wiegand output card readers (see the SBI RemotePro CR line), where all programming and auditing is done from the master station.

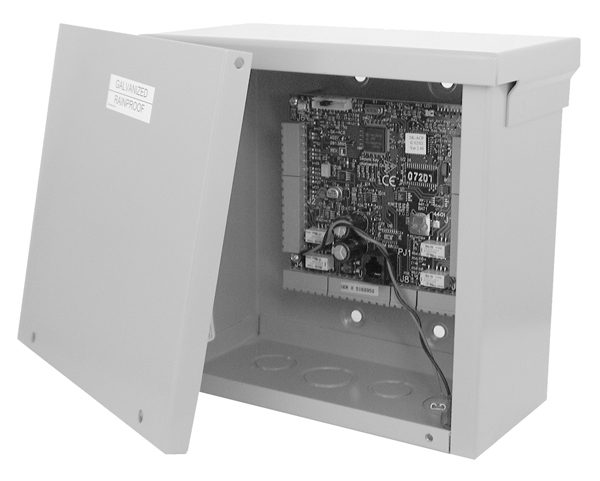

The AdvantageDG master controllers are available in two configurations: desk cabinet and raintight station. The desk cabinet (interior use only) is enclosed in a black metal housing that sits conveniently on the desk, allowing all programming to be done from the comfort of an office, while the raintight station is mounted inside of a standard electrical raintight enclosure.
Each of the AdvantageDG master stations has a 1000 transaction memory buffer that can be printed on an RS-232 serial port printer (SBI #21-045 or #21-047). The controller will report time, date, card number entered, gate activated (when split relay function is enabled) and valid / invalid card. When the SBI #21-047 desk printer is used, the invalid cards can be printed in red ink on the report.
So whether you have existing 26 bit wiegand card readers or need new ones, the AdvantageDG controller gives you the flexibilty you need and the price you can afford.
Features
- 2000 card capability
- Two slave card reader ports, 26 bit Wiegand
- Programmable Personal Master Code
- Programmable Latch / Unlatch Card
- Programmable Sleep Card
- Split-relay function
- Three strikes youre out
- True Anti Pass Back
- 1000 code transaction buffer
- LED indicators
- Audible tone
- Non-volatile memory
- Limited two year warranty
General Specifications
• Input: 16.5 VAC (transformer included)
• Output: 2 relays, n/o or n/c contact; 1 – 99 seconds
